HD Series

Application: 16-gauge steel front cover, 20-gauge back panel
Heights: 8-1/2" (one tier) 14" (one or two tier)
Lengths: 2' - 8'
Depth: 3-1/2"

The extraordinary strength in materials and construction of HD Series baseboard makes it ideal for installation in sites where rugged treatment is anticipated. HD Series is especially recommended for multi-family housing, schools and institutions. Its compact size and high output make it suitable for a wide range of new and retrofit applications. Strength and durability reduce maintenance and extend the life of the installation Extraordinary strength for a low cost.

Product Features

Heavy gauge enclosure and support brackets
Cover secures together with screws at each bracket location
3/4", 1" and 1-1/4" copper/aluminum elements permit higher flow rates, longer series-loop runs and lower pump loads where required
1-1/4" all-steel element, for use in one or two pipe steam systems
Factory pre-assembled in individual cartons for rapid installations
Finish: Galvanized is standard. Available in baked enamel
Custom color available on special order

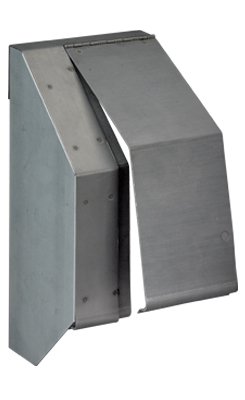

Telescopic cover accessories
Accessories have a screw hole to secure accessories to front cover
Pan head screws supplied by others

How It Works

hd850milwaukeeairport

A picture of HD-850 installed in the Milwaukee Airport baggage claim area. This installation was done years ago. It is installed right by the cart area and receives a lot of abuse. Please note other than some paint damage it is in great shape. Seeing is believing, this is indeed “Tough Stuff” and it would be tough finding a higher abuse area to install it in.

Slant/Fin baseboard provides gentle full room convection heating that blocks chilling drafts at the outside walls. Slant/Fin hot water baseboard heating surrounds your customers with heating comfort. Natural convection perimeter heating blocks chilling drafts at the outside walls where they originate. No annoying on-and-off blowing ducts. No dirt and germs blown through forced air system. Easy to zone for room by room comfort control. Ideal for use with high efficiency boilers.
