You know our baseboard... you'll love our boilers!

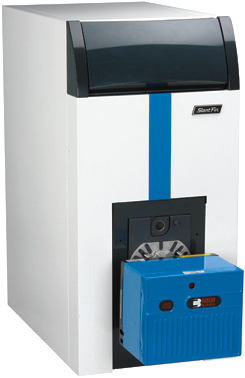

Eutectic EC 20

High Efficiency Eutectic EC 20 Series


eutectic_ec20
  • Fuel: Oil-Fired
  • System: Hot Water
  • Combustion: Atmospheric
  • Capacity: 4 sizes, 1.55 - 2.50 GPH Firing Rate
  • Efficiency: up to AFUE 86.5%

The EC-20 Series is a triple pass boiler made with a proprietary eutectic cast iron heat exchanger that is resistant to thermal shock and corrosion.  The cast iron is flexible and resilient which allows for lower temperature operation. We’ve done the testing and have matched burners and components to this boiler to make sure the boiler will stay running clean after you leave the job.



Product Features

  • 190-302 MBH D.O.E Capacity
  • Quietest Oil boiler the industry offers
  • Three pass heat exchanger maximizes heat transfer
  • Easy to clean, operates clean
  • Eutectic cast iron Resistant to thermal shock and corrosion
  • Outdoor reset compatible with low water temps
  • Hinged, reversible swing out door for fast, easy cleaning
  • Shipped knocked down for field assembly
  • 25 Year Limited Lifetime Warranty

How It Works

The EC Series efficiency is a result of the boiler’s unique three pass design heat exchanger with specially designed baffles for maximum heat exchanger contact, flue turbulation and heat transfer. The three pass design of the Eutectic makes it very quiet too. There is plenty of room for thermal expansion of the flue gasses to keep burner and flame noise to a very minimum.
