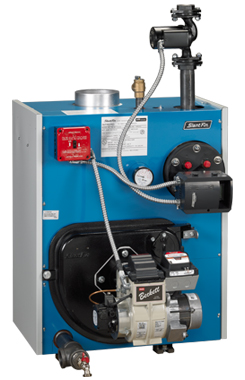

Intrepid Hot Water

Intrepid Hot Water


intrepid_hw
  • Fuel: Oil-Fired
  • System: Hot Water
  • Combustion: Atmospheric
  • Capacity: 5 sizes, .75-3.35 GPH Firing Rate
  • Efficiency: up to AFUE 86.0%

Performance, durability and versatility rank Slant/Fin's Intrepid among the world's best oil boilers. The Intrepid is a a full-featured oil boiler with models in hot water and steam.  This versatile oil boiler has options for tankless heaters for domestic hot water (DHW) and direct vent models. Exceptionally low draft loss ensures excellent performance across a broad range of chimney and draft conditions. The Intrepid boiler is very “service friendly”.



Product Features

  • 91-381 MBH D.O.E Capacity
  • For residential to light commercial requirements
  • Domestic hot water coil optional
  • Robust cast-iron heat exchanger
  • Installer-friendly features
  • More Btu's per section than ordinary boilers
  • Metal push nipple to connect individual sections
  • 25 Year Limited Lifetime Warranty

Tankless Heater Features

  • Can accommodates a larger coil to maximize output
  • Cover plate is visible for easy inspection
  • Stainless steel cap nuts facilitate routine maintenance

How It Works

The Intrepid boiler is designed to protect against the adverse effects of changing operating conditions. Many boilers suffer from poor combustion and soot buildup when their setup conditions are changed by cold oil, cold air or changes in chimney draft. The contoured shape of Intrepid’s heat exchanger has one of the lowest draft losses in the industry. This supports stable combustion. Burners are configured for each specific model to provide smooth, clean, efficient operation. Unlike most oil boilers, Intrepid’s push nipples are located to the side, out of the way of the flue gasses. This creates more uniform heat transfer, minimizes draft loss and reduces soot build-up.

For Steam Model: A generous 3” supply tapping helps produce drier steam, resulting in quieter operation of the heating system.

Product Video

Intrepid Hot Water video not available at this time
