You know our baseboard... you'll love our boilers!

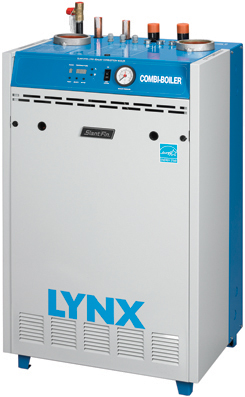

Lynx Combi

High Efficiency Lynx Combi


lynx_120dhwg
  • Fuel: Gas-Fired
  • System: Hot Water
  • Combustion: Sealed Combustion
  • Capacity: 2 sizes, 30– 150 MBH Input
  • Efficiency: up to AFUE 93%

The Lynx Modulating Condensing Gas Boiler is compact, powerful and agile. This Energy Star rated boiler features the combi-boiler option that provides heat and domestic hot water neatly packaged in one cabinet! The amount of hot water that is produced is largely dependent on the BTUH output of the boiler, the desired flow rate and the temperature on the incoming cold water. You will be proud to offer the Lynx to your customers looking for a high efficiency, advanced technology, long lasting boiler.



Product Features

  • Advanced design long life cast aluminum heat exchanger
  • 3.4:1 modulation
  • All boilers ready for Floor standing or wall mount
  • Natural or L.P. gas
  • PVC/CPVC vent pip up to 100 ft. equivalent length
  • All connections on top
  • Easy access terminal strip for wiring
  • Quiet operation
  • Low NOx — friendly to the environment
  • Ideal for radiant, baseboard, DHW or mixed applications
  • Brazed plate heat exchanger mounted neatly in boiler cabinet
  • 15 Year Limited Warranty with 5 year parts and labor warranty
  • 5 Year Parts and Labor Warranty

How It Works

The Lynx boiler is a hot water boiler heating system which incorporates a new generation of cast aluminum heat exchanger that is corrosion resistant. The patented heat exchanger maintains high water velocity which prevents plugging and virtually eliminates the risk of flashing into steam. The boiler utilizes a reliable spark ignition system. Its high thermal conductivity brings warmth quickly to the living space.

By incorporating a brazed plate heat exchanger into the boiler design, the boiler now transfers heat to Domestic hot water. The unit transfers heat to the hot water with nearly 100% efficiency. It requires no maintenance and will last for years. An extra circulator pump and flow switch are included with the combi boiler. The pump is sized to overcome the friction losses of the boiler and heat exchanger and therefore provides enough of the boiler water flow to transfer the maximum amount of heat energy from the boiler to the domestic hot water

The Lynx’s advanced operating controls automatically modulate gas input up or down according to demand. Ordinary boilers run inefficiently when they repeatedly cycle on and off, just as stop and go driving reduces a car’s gas mileage. The Lynx will closely match the boiler’s output to just what is needed to meet demand for heat, it has longer run times and wasteful cycling is reduced. Lynx’s controller also resets supply water temperature automatically when connected to an outdoor sensor, further enhancing efficiency of the entire heating system.
